Description
About us:
We were established in 2009. We already have rich experience in the industrial control computer hardware industry. “ELSKY” is our own brand. Our brand has been familiar and trusted by customers all over the world.
We are motherboard manufacturer. And we have 35 R&D engineers and technicians. Every year we launch at least 15 new products. In recent years, the hot 1037F I3HGP I5HGP I7HGP M218F M219F M229F QM9400 QM9500 QM9600 QM9700 QM9850 QM10U QM6700 NUC600 NUC700 NANO8F NANO9F QM6600 QM6637 QM1100 QM3100 OPS9900 OPS9950 OPS994K OPS-H81 OPS8600 OPS-H110 OPS-10U OPS-H310 J19E4L J19E6L BT-4L and other products are developed and sold by our company.
We research and develop products, purchase raw materials, produce products, control quality, sales, and after-sales. We are familiar with the entire industry, our products are selling well, our prices are advantageous, and our products are guaranteed.
Please contact us, our products and prices will make you satisfied!
Please give us a chance to cooperate with each other, we will not let you down!
Thank you for your support and attention, my friend!
Price Explanation!!!
All of prices are barebone Motherboard(Motherboard+CPU).
If you need Memory,SSD,HDD,WIFI,License operating system,3G,4G,GPS,power adapter and other accessories, please contact us to get the prices.
Different configurations, different prices.
We will quote according to your request.
If you need to purchase in large quantities, or want to know about promotional activities/clearance sale, please contact us for the best price.
The prices of this product link are for reference only!
We don’t update product links frequently. If you want to know the latest price, please contact us.
Notice:
The prices will vary with exchange rates and material costs.
All prices are subject to change without notice.
All product specifications are subject to change without notice.
Thank you for your attention and support!

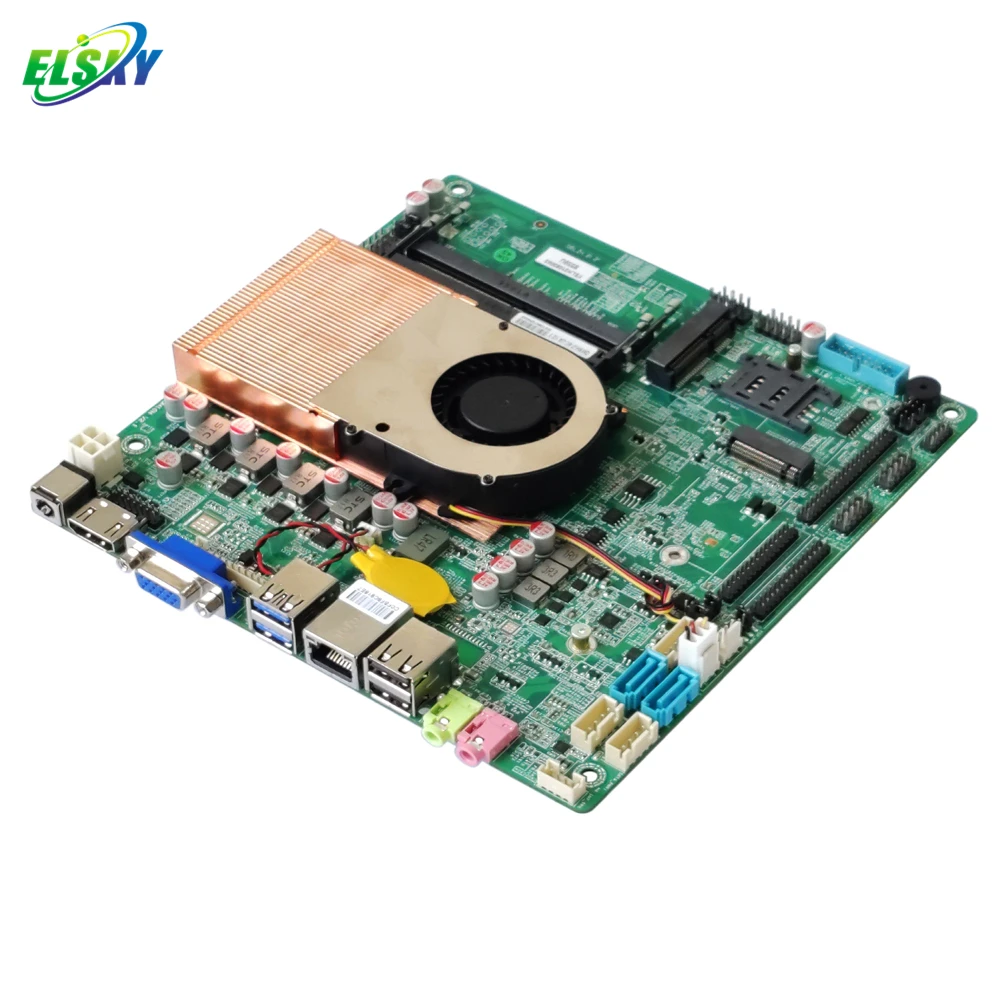

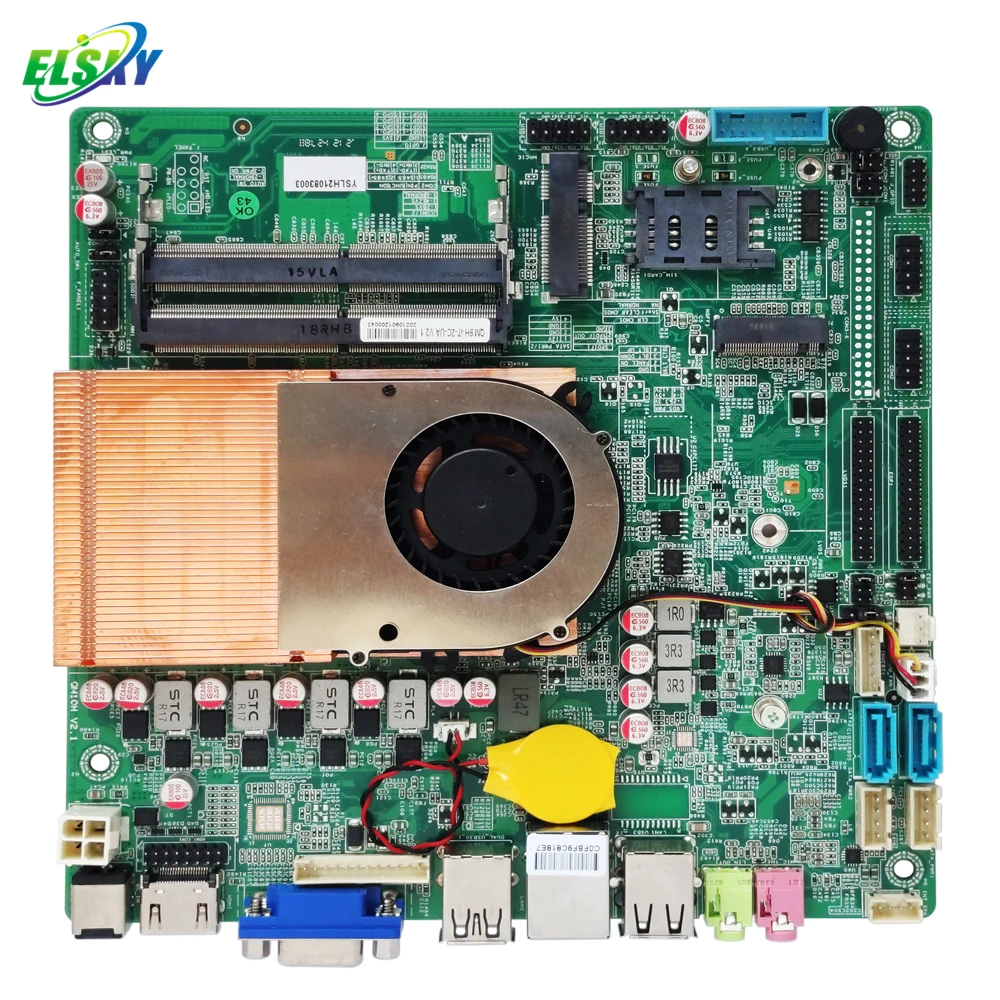

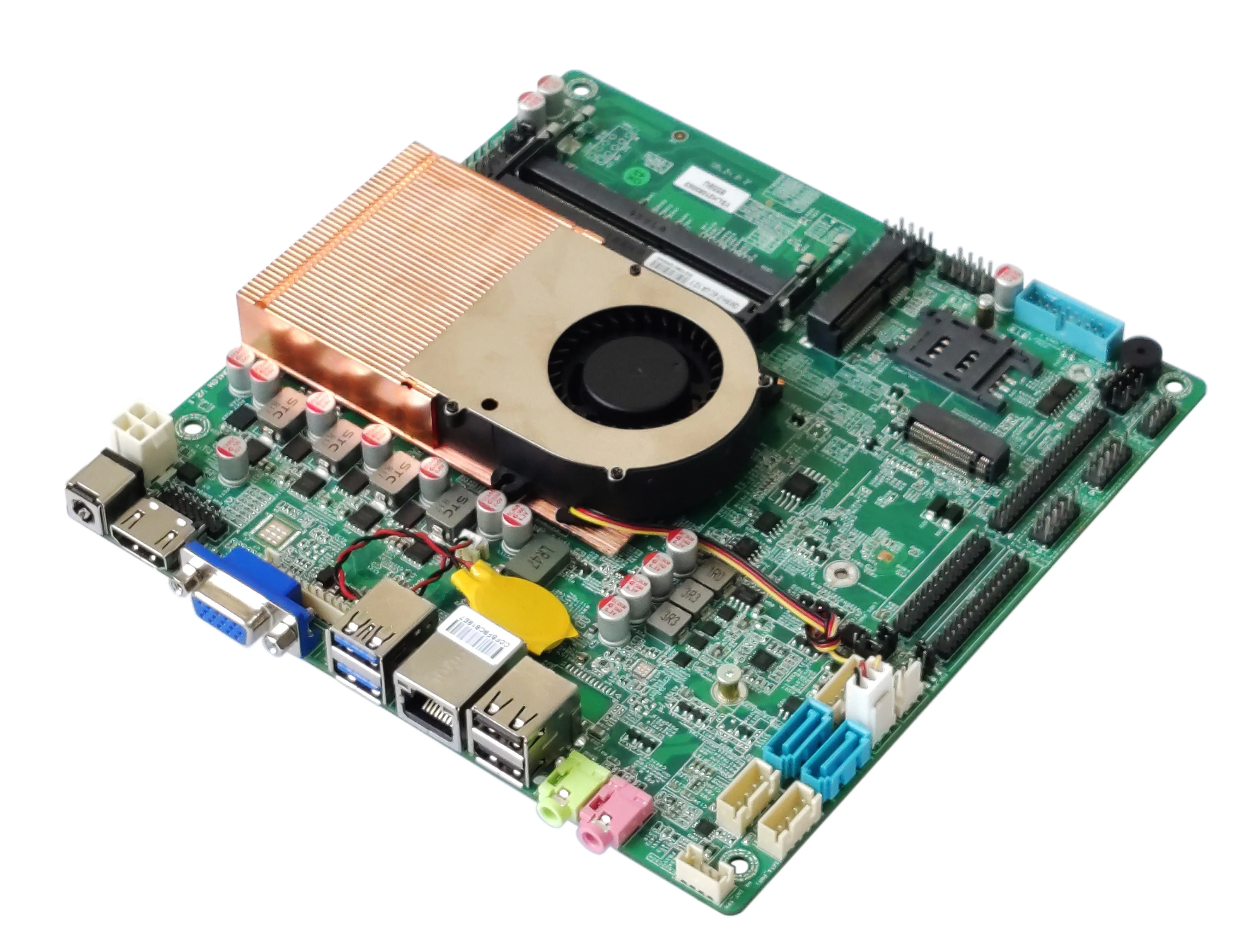

Product specifications:
Model: QM8H QM9H QM10H
Version: 2.1
|
Optional Processors |
QM8H: 8th Gen. Intel-Whiskey-Lake CPU: i3-8145U, i5-8265U, i7-8565U,etc. QM9H: 8th Gen. Intel-Coffee-Lake CPU: i3-8109U, i5-8259U, i7-8559U,etc. QM10H: 10th Gen. Intel–Comet–Lake CPU: i3-10110U, i5-10210U, i7-10510U,etc. |
|
Memory |
2xSODIMM DDR4 Memory Channels, up to 64GB RAM. |
|
Storage |
1×2242/2280 M.2 slot, 2xSATA3.0 interfaces. Option 1xMSATA |
|
Cooling System |
With fan(Active cooling) |
|
Power |
DC 12V , DC Jack 5.5×2.5mm, 70W power consumption. |
|
Ethernet |
1xRealtek 8111G GbE RJ45 LAN; Option 2xLAN, 100Mbps. |
|
Processor Graphics |
Integrated Intel-UHD Graphics in CPU; Support up to 3 displays. |
|
HD Audio |
Integrated HD Audio chip. 1xLine_out, 1xMic_in, 1xINT_SPK. |
|
Expansion Slot |
1xMINI PCI-E slot; Support WIFI/3G/4G/GPS,etc. |
|

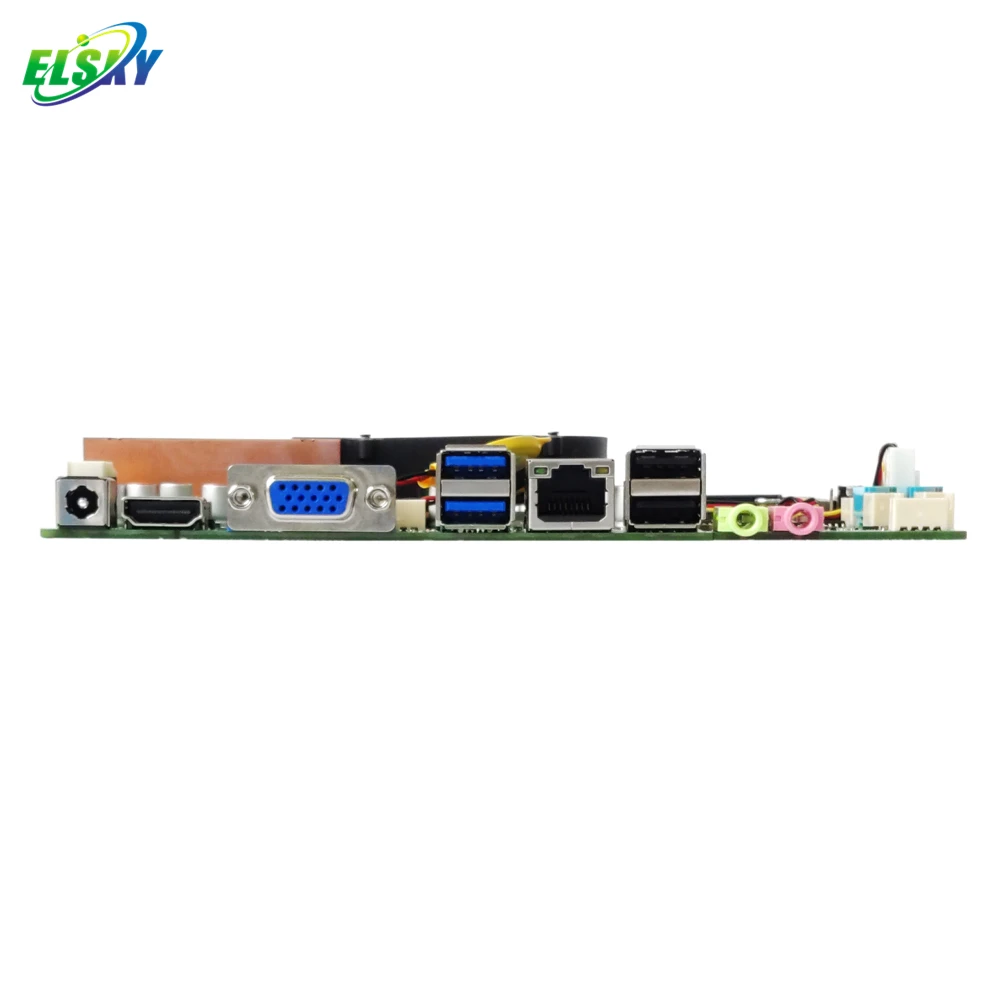

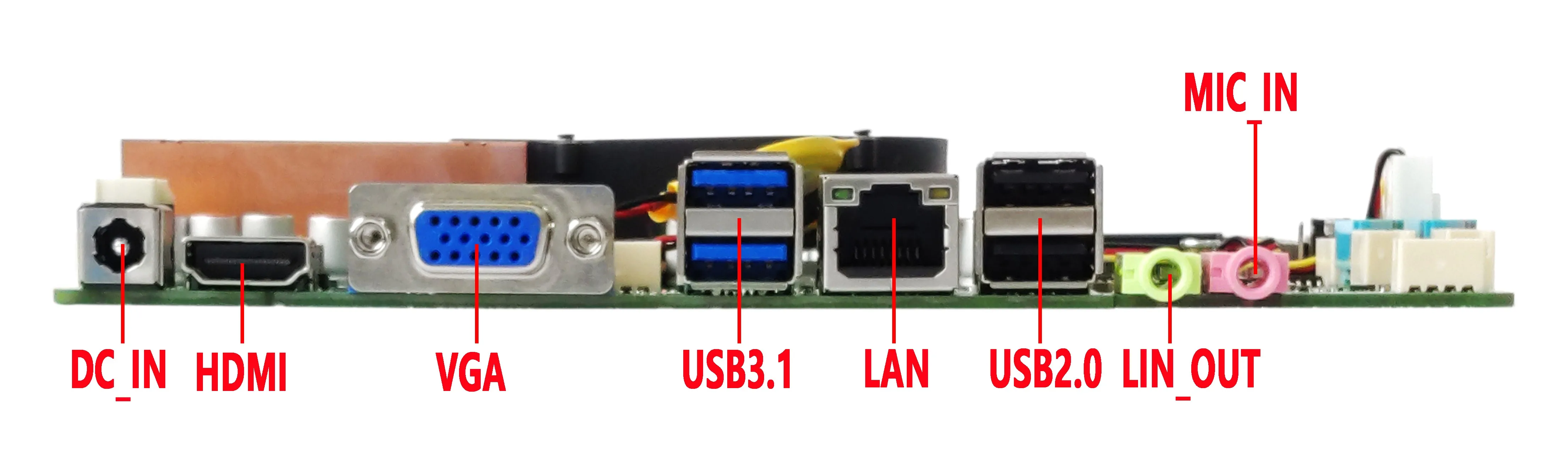

Rear I/O |
1xDC Jack, 1xVGA, 1HDMI, 2xUSB2.0, 2xUSB3.1, 1xLAN, 1xLine_out, 1xMic_in. |
|
Internal Connector |
VGA, 1HDMI, LVDS/EDP, 5xUSB, F_PANEL, AUTO_SW, 2 or 6xCOM,SIM_CARD slot, GPIO,etc. |
|
Form Factor |
THIN-ITX, 170x170x23mm(LxWxH) |
|
Environment |
Operating temperature: –20鈩�~60鈩�; Working humidity: 5%~95% Relative humidity, no condensation. |
|
Support OS |
Win 10 64bit, Linux; Option Win 11. |
|
Optional Cases |
HD4005, HD4006, IPC6000,etc. |
|
Similar Models |
QM11U, QM8U, QM10U, etc. |
Product application fields:
FAQ:
Q: Who are you?
A: We are Shenzhen ELSKY Technology Co.,Ltd.ELSKY was established in 2009.“ELSKY”is our own brand.
Q: What we do?
A: We develop,produce,sell industrial motherboard,fanless industrial PC,mini PC,OPS PC, Server,touch panel PC,etc.
Q: How many engineers are there in your company?
A: Now we have 35 engineers & technicians.
Q: What’s your payment ways?
A: We accept TT,Western Union,Paypal,Alibaba Trade Assurance,etc.
Q: What’s your shipping ways?
A: DHL,FedEx,TNT,UPS,CDEK,EMS,Aramex,Epacket,etc.
Q: What’s your MOQ?
A: 1 piece
Q: What is lead time of the products?
A: Within 1~20 working days(According to quantity,inventory status).
Q: Can you provide OEM/ODM service?
A: Yes,we provide.
Q: How long is your warranty period?
A: 1 year.If you want to extend the warranty period, please contact us!
Q: What is your after-sales service?
A: Technical support,maintenance service.
To get more information,please contact us at any time,thanks!
